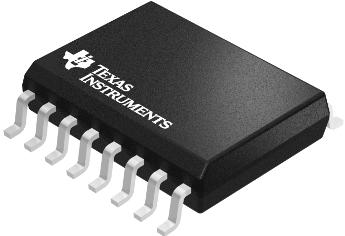

Encoders SN74HC148DWR
Texas Instruments
SN74HC148DWR
--
Standard and Specialty Logic
Encoders
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| Type | Priority |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 16 |
| Part Status | Obsolete |
| Logic Family | HC |
| Package Width | 7.6(Max) |
| Package Height | 2.35(Max) |
| Package Length | 10.5(Max) |
| Supplier Package | SOIC |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Number of Encoded Keys | 0 |
| Output Drive Capability | -5.2mA/5.2mA |
| Clock Controlling Signal | No |
| Number of Element Inputs | 8 |
| Number of Element Outputs | 3 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 1 |
| Absolute Propagation Delay Time (ns) | 245 |
| Maximum Operating Supply Voltage (V) | 6 |
| Minimum Operating Supply Voltage (V) | 2 |
| Number of Output Enables per Element | 0 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 180@2V|36@4.5V|31@6V |
| Description |
