Digital to Analog Converters - DACs LTC2636CDE-LMI10#TRPBF
ADI

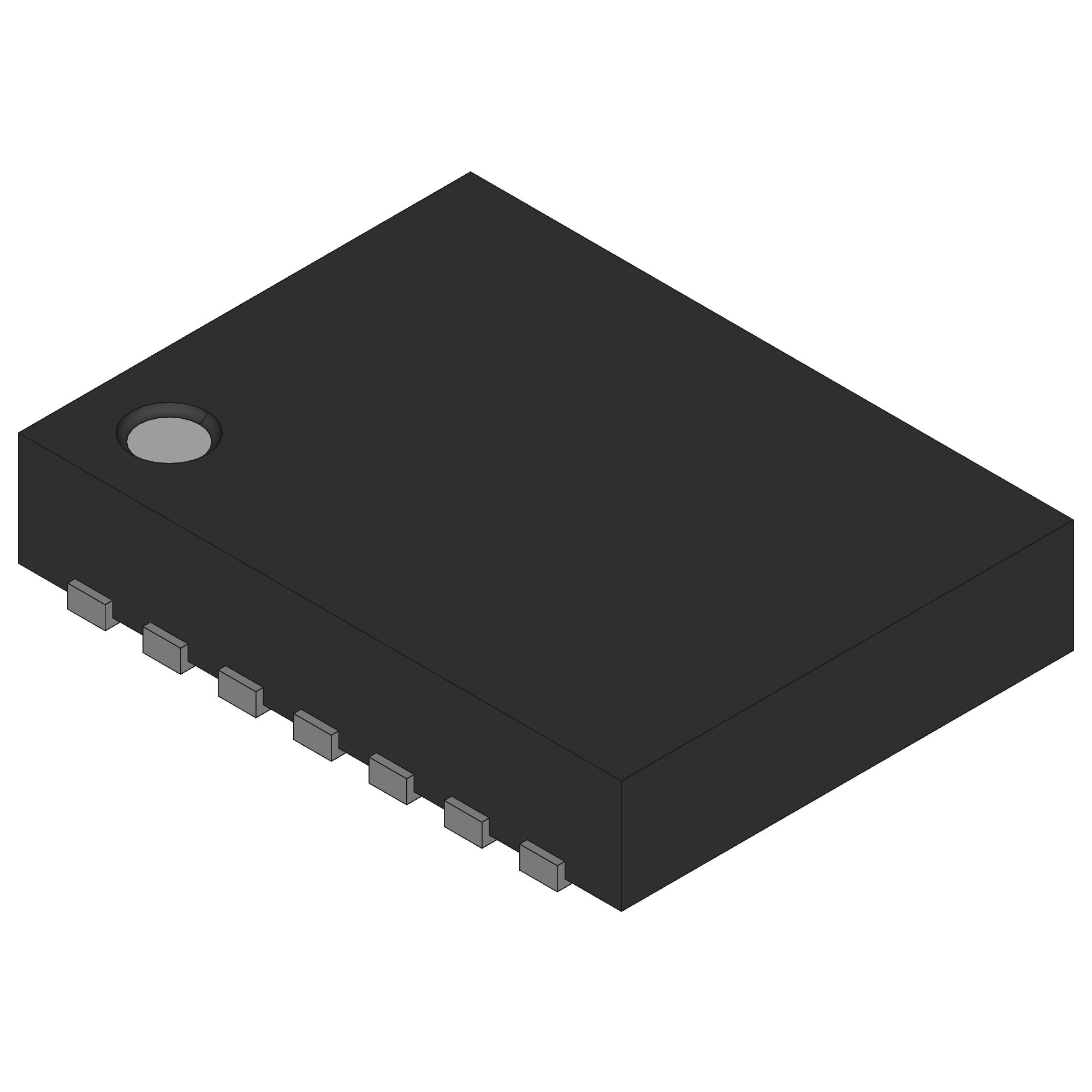

LTC2636CDE-LMI10#TRPBF
--
Data Acquisition
Digital to Analog Converters - DACs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | No Lead |
| Resolution | 10bit |
| Output Type | Voltage |
| PCB changed | 14 |
| Part Status | Active |
| Package Width | 3 |
| Converter Type | General Purpose |
| Package Height | 0.75(Max) |
| Package Length | 4 |
| Output Polarity | Unipolar |
| Full Scale Error | ±0.8%FSR |
| Supplier Package | DFN EP |
| Power Supply Type | Single |
| Voltage Reference | Internal|External |
| Standard Package Name | DFN |
| Digital Interface Type | Serial (3-Wire, SPI, Microwire) |
| Digital Supply Support | No |
| Number of DAC Channels | 8 |
| Maximum Settling Time (us) | 4(Typ) |
| Number of Outputs per Chip | 8 |
| Supplier Temperature Grade | Commercial |
| Integral Nonlinearity Error | ±1LSB |
| Maximum Power Dissipation (mW) | 2.7(Typ) |
| Maximum Single Supply Voltage (V) | 5.5 |
| Minimum Single Supply Voltage (V) | 2.7 |
| Typical Single Supply Voltage (V) | 3.3|5 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Description |
