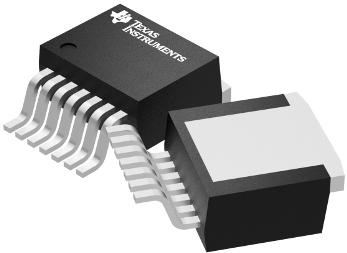

DC to DC Converter and Switching Regulator Chip LM2677SX-ADJ
Texas Instruments
LM2677SX-ADJ
--
Power Management
DC to DC Converter and Switching Regulator Chip
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| SVHC | Yes |
| Type | Synchronous Step Down |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Adjustable |
| PCB changed | 7 |
| Part Status | Unconfirmed |
| Package Width | 9.4(Max) |
| Efficiency (%) | 84(Typ) |
| Package Height | 4.65(Max) |
| Package Length | 10.41(Max) |
| Supplier Package | TO-263 |
| Number of Outputs | 1 |
| Output Voltage (V) | 1.2 to 37 |
| Switching Regulator | Yes |
| Standard Package Name | TO-263 |
| SVHC Exceeds Threshold | Yes |
| Maximum Input Voltage (V) | 40 |
| Minimum Input Voltage (V) | 8 |
| Switching Frequency (kHz) | 260(Typ) |
| Maximum Output Current (A) | 5 |
| Operating Supply Voltage (V) | 8 to 40 |
| Typical Quiescent Current (uA) | 4200 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
